介紹:

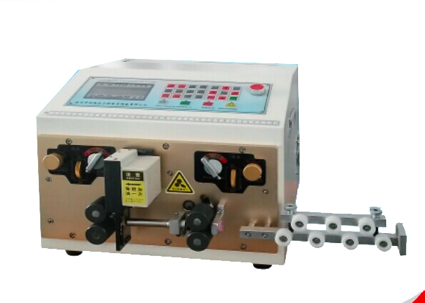

880A電腦剝線機（1-16方）The computer shells wire machine
特點說明（Characteristic description)：
電腦控制，按鍵作，高速剝線可任意設定剝線長度，剝頭長度，或半剝長度，降低成本，經久耐用，無需維護。
Computer control, the key makes, the high speed shells wire to arbitrarily set to shell wire length and shells a length, or the quasi shell length and cut low cost, through long enduring, don't need to be supported。
機型規格Model specification
型號Model | DW-880A粗線型 |
外形尺寸Dimensions | L418*W358*H308 |
重量Weight | 35KG |
顯示方式Display | 中文，液晶 Chinese interface LCD display or English interface |
電源Power | 220V／260W |
切割長度Cutting Length | 1mm-99999.99mm |
剝皮長度Stripping Length | 0.5mm-35mm |
中間剝切Intermediate peeling and cutting | 帶有中間切皮15處Intermediate cut at fifteen |
剝線范圍Cutting Range | 0．1-16mm2多股軟線 |
導線類型Wire Material | PVC、鐵氟龍線、玻璃線 PVC and ferromolybdenum fluorine Long Xian, glass wire |
切割公差Cutting tolerance | Within 0.002 * Lmm ※ L=cutting length |
導管直徑Max. wire diam | 1-12mm |
驅動方式Driving way | 四輪驅動，,獨立驅動盒驅動Four-wheel drive, independent drive box driver |
生產率（次／分）Productivity(pcs／m) | 大約50 PCS |
